Shockwave Therapy Explained: A Comprehensive, Evidence-Based Educational Post

Introduction Abstract

As a clinician and researcher, I’ve spent years evaluating regenerative technologies for musculoskeletal and soft-tissue care, both in conservative orthopedic practice and in integrative rehab settings. In this educational post, I present a clear, evidence-based exploration of shockwave therapy—what a true shockwave is in physics and biomedicine, how different devices generate their waveforms, and why it matters for clinical outcomes. I will walk you through the physiological underpinnings that drive shockwave’s biological effects at the cellular level, including mechanotransduction, angiogenesis, proliferation, cytokine signaling, macrophage phenotypic switching, and modulation of inflammation. This narrative combines recent research from top scientists using careful methods—such as analyzing waveforms, imaging blood flow, studying tissue, profiling biomarkers, and measuring clinical outcomes—to help doctors make better choices.

We will start with the basics: what a shockwave is in physics and how its features, like compressive and tensile phases, rise time, peak pressure, and focal geometry, affect how cells communicate and how tissues respond. I will explain the differences between the three main types of extracorporeal shockwave therapy (ESWT) systems used in clinics—piezoelectric, electromagnetic, and electrohydraulic—and clarify why “radial wave” devices, although useful for surface treatments, are not considered true You’ll learn how device engineering translates into waveform morphology (rise time, coda/ringing, tensile integrity), penetration depth, focal zone characteristics, and cellular activation capacity. We will look at how shockwaves support healing by improving blood flow and blood vessel function, promoting cell growth and repair, and reducing inflammation, all of which contribute to the healing process.

Next, I’ll explain how electrohydraulic systems create a true shockwave through a small plasma event, which causes quick high-pressure bursts followed by clear tensile waves, and why it’s important that there are no trailing “coda” ripples for effective cavitation dynamics and stem-cell activation. We will talk about why rise times of about 5–10 nanoseconds and pressure peaks near tens of megapascals are important for starting strong signaling, new blood vessel growth, and tissue remodeling in deeper areas of the body like the hip, shoulder, and spine.

I will then explain in detail how to design the focal zone and distribute depth—showing why using unfocused or very narrow shapes can waste energy or apply force poorly, causing discomfort or inconsistent results—and how well-designed electrohydraulic systems can balance coverage and accuracy to provide steady therapeutic intensity at the right depths for treatment. I will explain how optimizing cellular responses involves maintaining the right waveform shape, stability during the stretching phase, and evenly spreading energy at the right depth, which can lead to noticeable improvements (usually 10–30% after the first visit), further gains (about 50% by sessions 4–5), and significant recovery (up to 80–95%)

Throughout, I will translate complex biophysics into clinical reasoning: which conditions respond best to which waveforms, when localized pain modulation is sufficient, and when deeper regenerative signaling is essential. You’ll see why piezoelectric and electromagnetic systems can be very useful for targeted, superficial, or modest applications, and why electrohydraulic systems tend to outperform in chronic degeneration and large-joint pathologies due to their ability to deliver a true shockwave with both compressive and tensile phases. Finally, I will provide practical guidance: device selection criteria, protocol design logic, dosing rationales, patient tolerability considerations, and outcome tracking using validated measures. The result is a modern, rigorous understanding of shockwave therapy—rooted in physics, physiology, and clinical evidence—to help you choose the right technology and treatment strategies for your patients and your practice.

Shockwave Therapy Foundations: What a True Shockwave Is and Why It Matters

In my clinical and research work, I begin with the physics definition to keep our methods consistent with empirical evidence. A true shockwave is a disturbance that moves faster than the speed of sound in the area and creates a quick, strong increase in pressure—usually within about 5–10 nanoseconds—followed by specific phases that include a strong push and a pull. This rapid rise and high peak are not mere academic details; they shape how cells sense and respond to the energy.

• • Key concept: A shockwave is an instantaneous mechanical event characterized by a rapid pressure rise and a distinct compressive and tensile sequence.
  • The speed of the rise and the strength of the pull are important because they affect how bubbles form and how cells respond to mechanical signals, which in turn impacts blood vessel growth, stem cell



When you picture the event, imagine an explosion propagating a pulse through a medium—air, water, or tissue. In controlled medical systems, this energy is aimed exactly at a specific spot inside the body instead of spreading out widely, and the way the shockwave works enables it to reach deep tissues and start biological processes. The point is not brute force; it’s the timing and shape of the energy delivery.

Biological Effects of Shockwave: A Cellular Narrative of Repair and Regeneration

The clinical value of shockwave emerges from its ability to convert mechanical signals into biochemical activity—mechanotransduction. I often explain it with a simple underwater metaphor: cells as balloons in fluid. A nearby high-speed pulse compresses and expands those balloons in microseconds. That deformation initiates a series of reactions that unfold in phases:

• The angiogenic response
• Proliferation and cytokine signaling
• Inflammatory modulation and macrophage phenotype shift

Angiogenesis and Microcirculation Restoration

When tissues are injured or degenerated, microvascular collapse reduces oxygen delivery and nutrient flow, creating a stagnant biochemical environment. A focused shockwave can quickly improve blood flow in small vessels by activating endothelial cells, widening blood vessels, and initiating the formation of new blood vessels.

• Studies using microcirculation imaging in human capillaries have shown that blood flow can increase significantly within minutes after treatment, with top research groups often reporting a large boost right after the procedure.
• Pressure changes create stress and movement in the tissue, which are detected by certain proteins and channels, triggering a series of signals that help widen blood vessels and promote the growth of new endothelial cells.

Why it matters clinically: Increased blood flow rescues hypoxic tissues, stabilizes mitochondrial function, and reactivates stalled repair processes. Patients frequently notice early improvements in pain and mobility because metabolic waste clearance and oxygen delivery improve rapidly.

Proliferation and Cytokine Phase: Switching on Repair Pathways

Once blood flow is restored, the mechanical signals from the shockwave trigger growth-factor processes (like IGF, VEGF, and TGF-β) and cell

• Fibroblasts activate and begin synthesizing new collagen.
• Tenocytes and chondrocytes upregulate matrix proteins appropriate to tendon and cartilage environments.
• The extracellular matrix (ECM) undergoes controlled reorganization, improving mechanical integrity.

Clinically, this explains why we often observe not only immediate symptom relief but also progressive structural improvement across successive sessions. The tissue is not just calmed; it is actively rebuilding and reordering its microarchitecture.

Inflammatory Modulation: Calming Pathologic Pain Pathways

Inflammation is essential for repair, but chronic inflammation traps patients in cycles of sensitization, neuropeptide-driven pain, and dysfunctional immune responses. Shockwave therapy modulates rather than suppresses inflammation.

• Neuropeptide downregulation: Decreases in substance P and CGRP can reduce nociceptive signaling and hyperalgesia.
• Receptor-level modulation: Mechanical signals can affect the activity of purinergic and TRP channels and the profiles of cytokines that follow, which helps the immune system respond more specifically.
• Macrophages change from M1 (which cause inflammation) to M2 (which help repair), leading to more substances that reduce inflammation

Why this matters: Patients often experience marked pain reduction and improved function early—even after the first session—because pathologic inflammatory circuits are interrupted, and the immune response becomes pro-resolving.

Device Categories and Why Waveform Generation Matters

Clinically, I evaluate ESWT systems based on how they generate energy and the waveforms they produce. The three main categories used in medical settings are

• Piezoelectric
• Electromagnetic
• Electrohydraulic

Radial devices are often marketed under “shockwave,” but they are not part of the true shockwave category. They work like strong percussion tools, great for treating surface tissues, but they can’t reach the same depth or effectiveness in deeper muscle and bone areas as a real shockwave can.

Shockwave Key Considerations: Piezoelectric Systems: Precision with Limited Penetration

Piezoelectric systems employ hundreds of crystals arranged on a curved surface. When electrified, they vibrate in coordinated fashion and produce a convergent pressure wave at a focal point.

• Waveform characteristics: Smooth, slower rise time; lower peak pressure; small focal zone.
• Clinical implications: Useful for localized or superficial targets—small treatment areas near the surface. Frequently valuable in veterinary contexts where smaller anatomical targets are common.

Limitations: In deeper musculoskeletal applications, the reduced mechanical stimulation and limited penetration can constrain angiogenic and regenerative responses. For chronic, complex human pathologies, the resultant waveform may not consistently meet mechanotransductive thresholds at depth.

Electromagnetic Systems: Focused Pressure Waves with Ringing Effects

Electromagnetic devices use a coil and membrane. A rapid current through the coil pushes the membrane forward, producing a focused acoustic wave. However, these systems often exhibit trailing “coda” waves (ringing) following the initial pulse.

• Analogy: A stone dropped in water produces a splash followed by ripples; the ripples here are secondary waves that can prematurely collapse microbubbles.
• Result: Slower rise times and lower peak pressures compared to a true shockwave. The tensile phase may be disrupted, diminishing cavitation-mediated signaling and stem-cell activation.

Clinical use case: These devices can be effective for shorter-term pain relief and localized soft tissue recovery where deep regenerative signaling is not required. They tend to be practical in modest applications but may struggle with deep or large-joint cases demanding robust tensile-phase integrity.

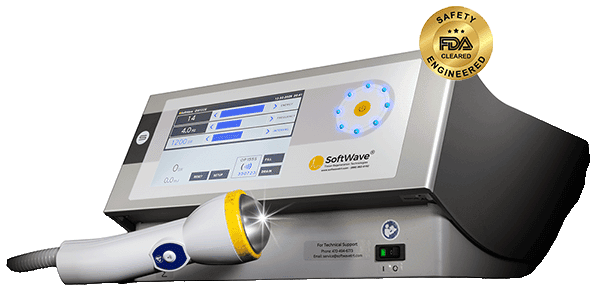

Electrohydraulic Systems: Generating a True Shockwave

Electrohydraulic systems create a miniature plasma event in a water chamber. The plasma discharge occurs within approximately 5–10 nanoseconds, generating an instantaneous high-pressure pulse followed by a clean tensile wave. A curved reflector focuses this energy to a defined point inside the body, analogous to a magnifying glass focusing sunlight.

• Waveform signature: Rapid rise, high peak pressure (often reaching tens of megapascals, such as ~65 MPa), and a distinct tensile phase with minimal to no ringing.
• Physiological consequence: Proper cavitation dynamics allow microbubble formation and controlled collapse at the right time, which triggers stem-cell recruitment, angiogenesis, and ECM remodeling.

Comparative research has demonstrated that some leading electromagnetic devices produce rise times in the range of tens to hundreds of nanoseconds, which—even though fast—may not consistently meet the stringent thresholds required for generating a true clinical shockwave across all settings. Electrohydraulic systems, by contrast, repeatedly demonstrate the rapid rise and tensile-phase integrity consistent with both the physics definition and biological signaling requirements.

Why Rise Time, Peak Pressure, and Tensile Integrity Drive Biological Outcomes

From a biophysical standpoint, the shockwave’s compressive front imparts high-frequency mechanical energy to cellular and extracellular components. Mechanosensitive structures—integrins, cytoskeletal elements, and stretch-activated ion channels—convert this into biochemical cascades. The tensile phase is equally critical, facilitating cavitation: small gas bubbles form and collapse in a controlled manner, producing microjets and localized stresses that amplify mechanotransductive signals.

• If trailing ripples (ringing) collapse bubbles prematurely, the full regenerative cascade is truncated.
• If the pressure increases too slowly or isn’t high enough, the necessary levels for activating endothelial cells, stimulating fibroblasts, and changing macrophage types might not be achieved in deeper tissues.

Electrohydraulic systems excel because they deliver the clean compressive-tensile sequence at therapeutic depth with appropriate focal coverage, empowering the angiogenic-proliferative-inflammatory modulation triad to unfold reliably.

Focal Zone Design: Precision with Purpose

In my practice, focal zone geometry is a decisive factor. I evaluate devices on whether they deliver energy efficiently across the intended treatment volume without unnecessary scatter or hyper-concentration.

• Unfocused beams: Energy travels straight forward like a flashlight, dispersing broadly. Clinically, the healthy surrounding tissue wastes much of the energy. To reach the real target—like a hip labrum or proximal hamstring origin—you often need to increase power, which elevates discomfort and resistance, lengthens session time, and risks inconsistent outcomes.
• Ultra-narrow focal zones: These focus energy into very small areas (a few millimeters wide). While precise targeting is possible, this approach is inefficient for larger or elongated structures (e.g., Achilles tendon, rotator cuff). It can increase discomfort and may require more frequent or longer sessions due to limited coverage.

The goal is not maximal width or maximal narrowness; it’s an optimized focal zone calibrated to typical musculoskeletal targets. Modern electrohydraulic devices are engineered to balance intensity and coverage, treating the entire lesion volume effectively without wasting energy.

Depth and Energy Distribution: Reaching Clinically Relevant Targets

Depth claims (e.g., “penetrates up to 12 cm”) must be interpreted with nuance. It’s not enough to reach a number on paper; the energy must be properly distributed at depth to achieve therapeutic thresholds throughout the lesion’s geometry.

• Some devices reach nominal depths but deliver insufficient intensity across the entire target volume, leading to variable outcomes for chronic tendinopathy, labral pathology, deep fascial adhesions, or capsular degeneration.
• Optimized electrohydraulic systems are designed to maintain adequate pressure profiles and tensile integrity at depth, aligning mechanical stimuli with tissue needs in hips, shoulders, and paraspinal compartments.

In practical terms, this means better treatment of the damaged tissue and more reliable healing, tissue repair, and control of inflammation.

Cellular Response Optimization: Turning Energy into Healing

Delivering mechanical energy is only step one. The ultimate objective is to activate cell signaling pathways that initiate and sustain a regenerative response.

Optimized electrohydraulic systems balance:

• Focal geometry for comprehensive lesion coverage
• Rise time for rapid mechanotransductive signaling
• Tensile-phase stability for cavitation-mediated stem-cell activation and vascular sprouting

Outcomes reported by clinics using these systems commonly show:

• Early improvement: 10–30% after the first session in selected cases
• Mid-course gains: around 50% by the fourth or fifth treatment
• Late-stage restoration: 80–95% improvement by the end of a full care plan, measured by pain reduction, mobility gains, and functional restoration

These figures are credible in clinical contexts that match patient selection criteria, dosing protocols, and device capability to the pathology at hand.

Translating Biophysics into Clinical Protocols

Treating with shockwave requires thoughtful protocol design. Here is my reasoning framework:

• Pathology characterization: Identify tissue type (tendon, fascia, cartilage, labrum), lesion size and depth, chronicity, and associated inflammatory profile.
• Target definition: Map the lesion volume and surrounding microenvironments (adjacent fascia, neurovascular interface).
• Device selection: Choose the waveform generator that matches the depth, focal geometry, and tensile-phase integrity needed. For deep, chronic degeneration: electrohydraulic; for superficial, localized soft tissue pain: piezoelectric or electromagnetic may suffice.
• Dosing parameters: Adjust the amount of energy used, the number of pulses, and how often sessions happen based on how much the tissue can handle and the specific biological effect you want (like
• Patient experience: Manage comfort with progressive dosing, clear communication, and adjunctive therapies (gentle myofascial release, neuromuscular reeducation).
• Outcome tracking: Use validated measures (VAS for pain, PROMs for function, dynamometry, range-of-motion metrics, and imaging when appropriate, such as ultrasound elastography or MRI for structural changes).
• Iterative adjustment: Modify focal zoning and dosing based on patient response, tolerance, and interim findings.

Why Piezoelectric and Electromagnetic Systems Still Have a Place

Despite their limitations in generating a true shockwave, piezoelectric and electromagnetic systems remain clinically valuable:

• They are precise and can be tuned for superficial lesions or small, localized targets.
• They can provide meaningful short-term pain relief via neuromodulation.
• They may help with early-stage soft tissue recovery where depth and tensile-phase integrity are less critical.

I employ these devices in targeted, lower-demand cases, acknowledging their strengths while reserving electrohydraulic systems for deeper regenerative needs.

Electrohydraulic Engineering Differences: What to Look For

Not all electrohydraulic systems are equal. Three engineering features influence outcomes significantly:

1. Focal zone design

• Seek optimized coverage that matches common musculoskeletal treatment volumes.
• Avoid overly diffuse or ultra-narrow profiles that either waste energy or over-concentrate force.

• Depth and energy distribution

• Verify that therapeutic intensity is maintained at the required depth across the lesion geometry.

• Cellular response optimization

• Favor systems that demonstrate rapid rise times, high peak pressures, and clean tensile phases without coda interference, supporting cavitation, angiogenesis, and stem-cell activation.

This triad correlates with the consistent improvements that high-performing clinics report.

Clinical Scenarios: Applying Shockwave Strategically

To make this concrete, here’s how I reason through common conditions:

• Chronic Achilles tendinopathy: Requires tensile-phase integrity and adequate depth/coverage along the tendon’s length. Electrohydraulic systems typically provide better cavitation-mediated signaling and ECM remodeling. Protocols balance the amount of energy used with how comfortable the patient feels, and they regularly check with ultrasound for changes in tendon thickness and new
• Greater trochanteric pain syndrome (gluteal tendinopathy/fascial involvement): The overall size Angiogenesis plus neuromodulation is targeted; post-treatment loading strategies are phased to avoid overstrain while capitalizing on improved perfusion.
• Rotator cuff tendinopathy and partial tears: Requires precision and depth around the supraspinatus footprint and subacromial space. Electrohydraulic waveform consistency aids collagen reorganization; dosing is titrated to pain tolerance.
• Hip labral pathology: Deep joint structures respond to clean tensile phases and well-distributed energy at depth. Shockwave combined with targeted rehab addressing pelvic mechanics, femoroacetabular impingement contributors, and capsular stiffness can result in superior outcomes.
• Plantar fasciopathy: Both neuromodulation and angiogenesis are beneficial. Piezoelectric/electromagnetic may provide relief; electrohydraulic often yields more durable structural improvements in chronic cases. Adjunctive loading protocols are crucial.
• Paraspinal myofascial pain: Radial devices can affect the outer tissues, but for deeper tissue problems, electrohydraulic treatment may be needed to improve blood flow and how the body responds
  Download

Why Patients Often Improve After the First Session

When perfusion improves and neuropeptides are modulated, nociceptive signaling decreases quickly. Cavitation dynamics and early mechanotransduction can also lead to quick changes in how stiff the tissue feels, which can be noticed by Still. I counsel patients that durable structural remodeling typically unfolds over multiple sessions, aligning with collagen synthesis timelines and macrophage phenotype transitions.

Reducing Drop-Offs: Comfort, Communication, and Consistency

Patient retention is tied to a clear plan, tolerable sessions, and early wins. Optimized focal zones prevent unnecessary discomfort and reduce resistance. Transparent education—explaining why tensile-phase integrity matters and how angiogenesis and proliferation require sequential dosing—builds trust. I set expectations: early relief plus progressive structural gains, tracked with measurable outcomes.

Evidence-Based Considerations: Research Methods and Data Integrity

When I review studies, I prioritize:

• Waveform verification: High-fidelity pressure-time measurements demonstrating rise time, peak pressure, and tensile-phase clarity.
• Biological tests: Changes in blood flow (like laser Doppler), levels of growth factors, signs of inflammation, and
• Imaging: Ultrasound, elastography, and MRI for structural changes; capillary perfusion assessments where available.
• Clinical outcomes: Randomized controlled trials, pragmatic trials, and cohort studies with validated function metrics and long-term follow-up.
• Reproducibility: Results replicated across labs and clinics, with device parameters transparently reported.

This strong evidence shows that when designed properly, electrohydraulic systems create waveforms and biological effects that match real shockwave therapy and have better healing potential.

Device Selection Checklist for Clinics

When choosing a shockwave system, I recommend evaluating:

• Waveform integrity: Rise time within ~5–10 ns, high peak pressure, clean tensile phase, minimal coda.
• Focal zone optimization: Coverage matched to common musculoskeletal targets without energy waste or hyper-concentration.
• Depth distribution: Verified therapeutic intensity maintained at clinical depths.
• Clinical outcomes: Independent data demonstrating early and sustained improvements.
• Patient tolerability: Ergonomic applicators, customizable dosing, manageable discomfort profiles.
• Support and training: Access to research, protocols, and ongoing education for effective integration of shockwave therapy.

Practical Protocol Framework

A generalized protocol might include:

• Assessment: Baseline pain (VAS), function (PROMs), ROM, strength, palpation findings, and imaging when indicated.
• Session design: Warm-up (light movement), shockwave application calibrated to lesion depth and tenderness, and brief post-treatment mobility.
• Dosing: Energy flux density aligned to tissue tolerance; pulse count and focal coverage adjusted per session goals.
• Frequency: Typically weekly to biweekly in early phases; tapered based on response.
• Adjunctive care: Targeted rehabilitation (eccentric loading for tendons), myofascial release, neuromuscular reeducation, and sleep and nutrition support to enhance tissue repair.
• Monitoring: Reassess at session 1 (early changes), sessions 4–5 (mid-course), and at plan completion (structural/functional endpoints).

Common Misconceptions and Clarifications

• “Radial is shockwave.” Radial devices are beneficial tools for superficial tissue modulation but are not true shockwave systems in the physics or biomedical sense.
• “Higher power always means better outcomes.” Power without proper focal geometry and tensile-phase integrity can increase discomfort without improving regenerative signaling.
• “Shockwave only reduces pain.” While neuromodulation is a key benefit, true shockwave’s angiogenic and proliferative effects guide structural repair and long-term function.
• “One session cures chronic degeneration.” Many patients feel better after the first session, but durable tissue remodeling requires structured, sequential treatments plus appropriate loading strategies.

Ethical and Clinical Responsibility: Patient-Centered Care

I combine shockwave therapy with a full range of other treatments, such as biomechanics, muscle balance, sleep quality, nutrition, and psychosocial factors. Device hype should never eclipse individualized assessment. The choice of technology must match patient-specific pathology and goals, and all interventions should be framed within informed consent and realistic expectations.

Summary

On 2026-02-25 14:44:55, I created this educational resource to clarify shockwave therapy from physics to clinical impact. A real shockwave has a fast rise time, a high peak pressure, and a clean tensile phase. These traits make mechanotransduction, cavitation-mediated signaling, angiogenesis, proliferation, and inflammation modulation possible. Piezoelectric and electromagnetic systems can help with pain and other problems in a specific area, but they often don’t have the waveform integrity (rise time and tensile-phase clarity) needed for deep regenerative signaling. Electrohydraulic systems generate a true shockwave via a miniature plasma event, achieving superior tensile-phase integrity and focal zone optimization, which correlate with better coverage at depth and more consistent outcomes in chronic, deep musculoskeletal conditions. Clinicians should evaluate devices based on waveform verification, focal geometry, depth distribution, patient tolerability, and independent outcomes data. Protocols should match tissue pathology, dose to tolerance, and integrate adjunctive rehabilitation. Early improvements are common, but durable remodeling requires sequential sessions and measured progress.

Conclusion

Shockwave therapy is a combination of very precise biophysics and clinical regenerative care. The compressive-tensile sequence, rise time, and focal geometry are not just technical details; they are the basis for angiogenesis, stem-cell activation, ECM remodeling, and inflammation modulation. Electrohydraulic systems, when designed to maintain a strong waveform and focused areas, effectively change mechanical energy into significant biological reactions at important depths for treatment. Piezoelectric and electromagnetic devices retain important roles for superficial and targeted applications. Careful choice of devices, patient-focused procedures, and thorough tracking of results make sure shockwave therapy achieves its promise as a modern, research-supported treatment for healing. By aligning physics with physiology and clinical reasoning, we can deliver care that is both compassionate and scientifically sound.

Key Insights

• A true shockwave is characterized by a quick increase in pressure, a high peak pressure, and a specific phase where tension occurs; these features cause cavitation and mechanotrans
• Biological effects happen in stages: angiogenesis helps restore blood flow, cell growth and signaling rebuild tissue, and adjusting inflammation (like changing macrophages from M1 to M2) helps ease
• Piezoelectric and electromagnetic systems can help with surface-level problems and pain relief, but they might not work as well for deeper healing because they take longer to build up and can create lingering effects.
• Electrohydraulic systems create a real shockwave through a plasma event, which leads to clear compressive and tensile phases, better focused areas, and improved energy spread at deeper levels, resulting in better results for long-term muscle and joint problems
• Clinical protocols should be tailored to each patient: choose the right device and treatment amount for their specific condition, include additional rehabilitation, and monitor results with reliable measures to ensure lasting improvement in
